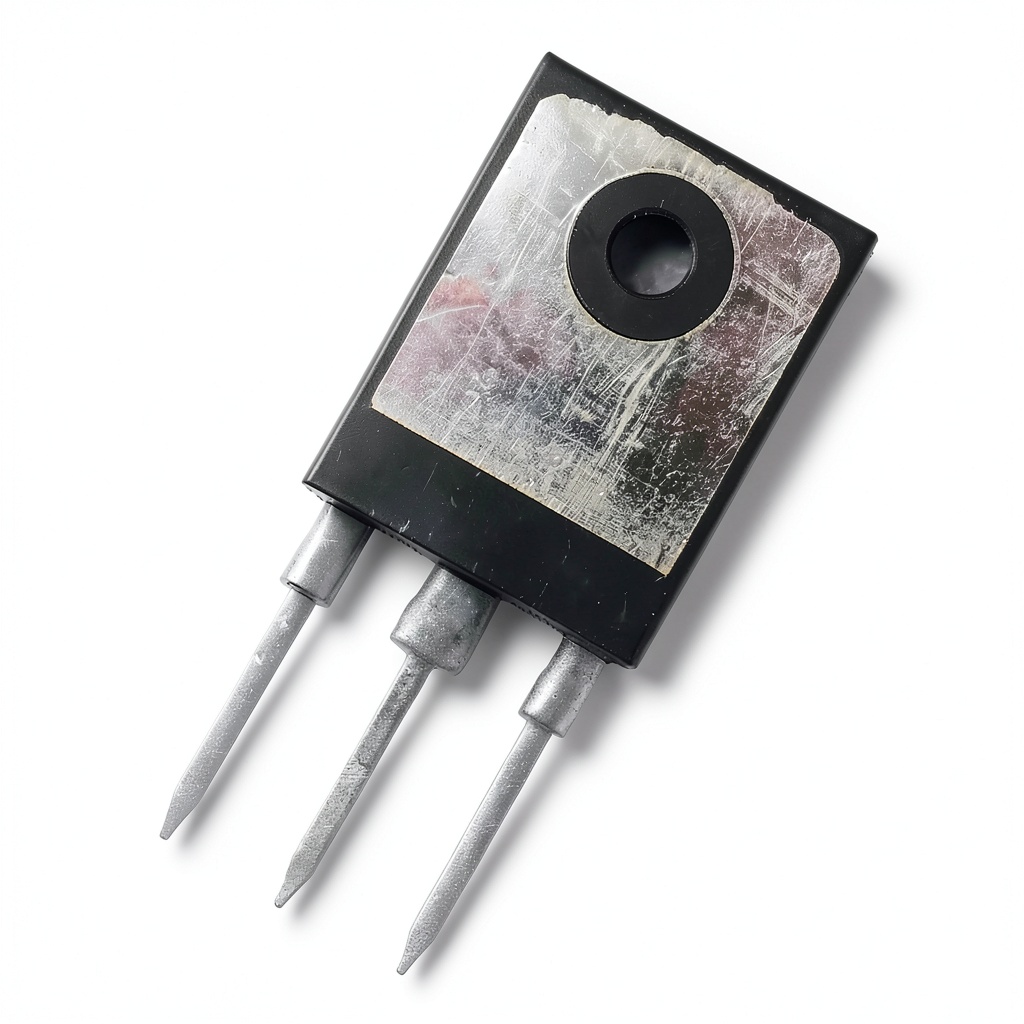

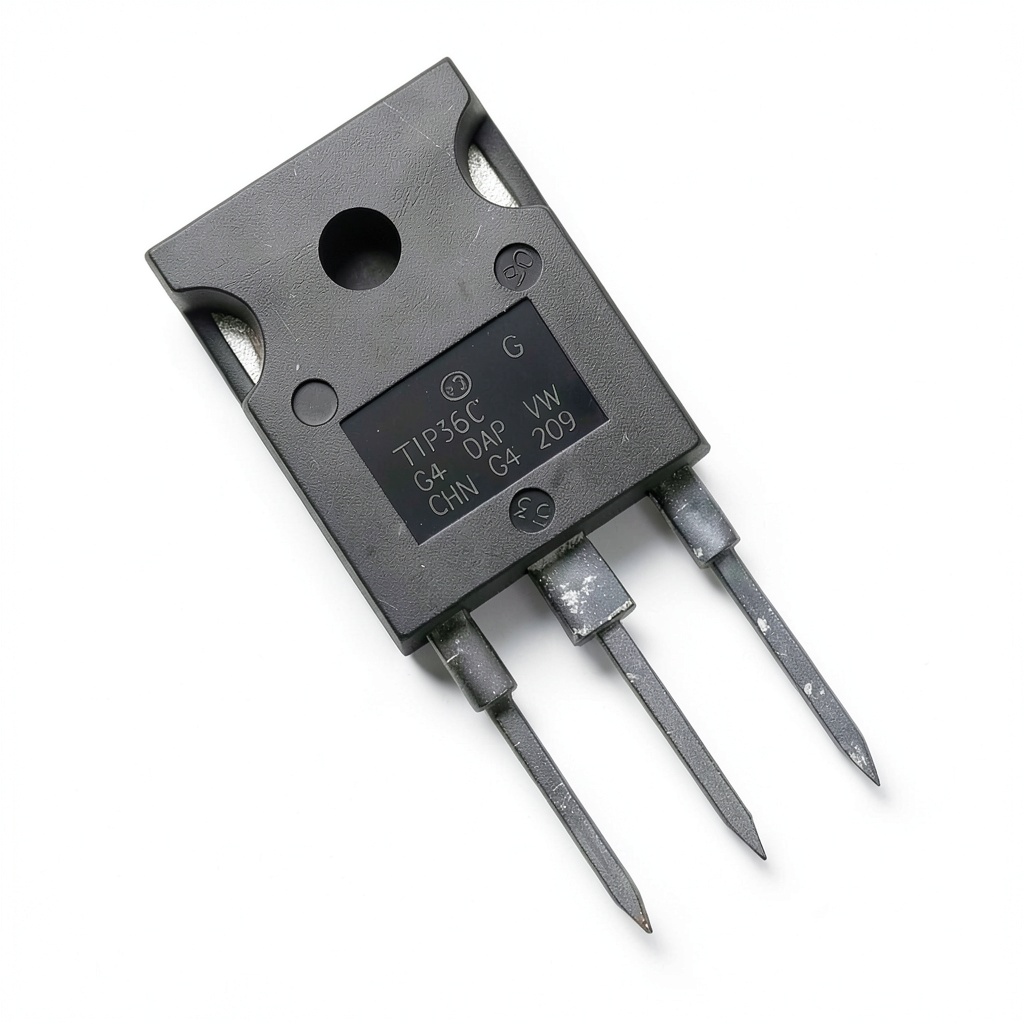

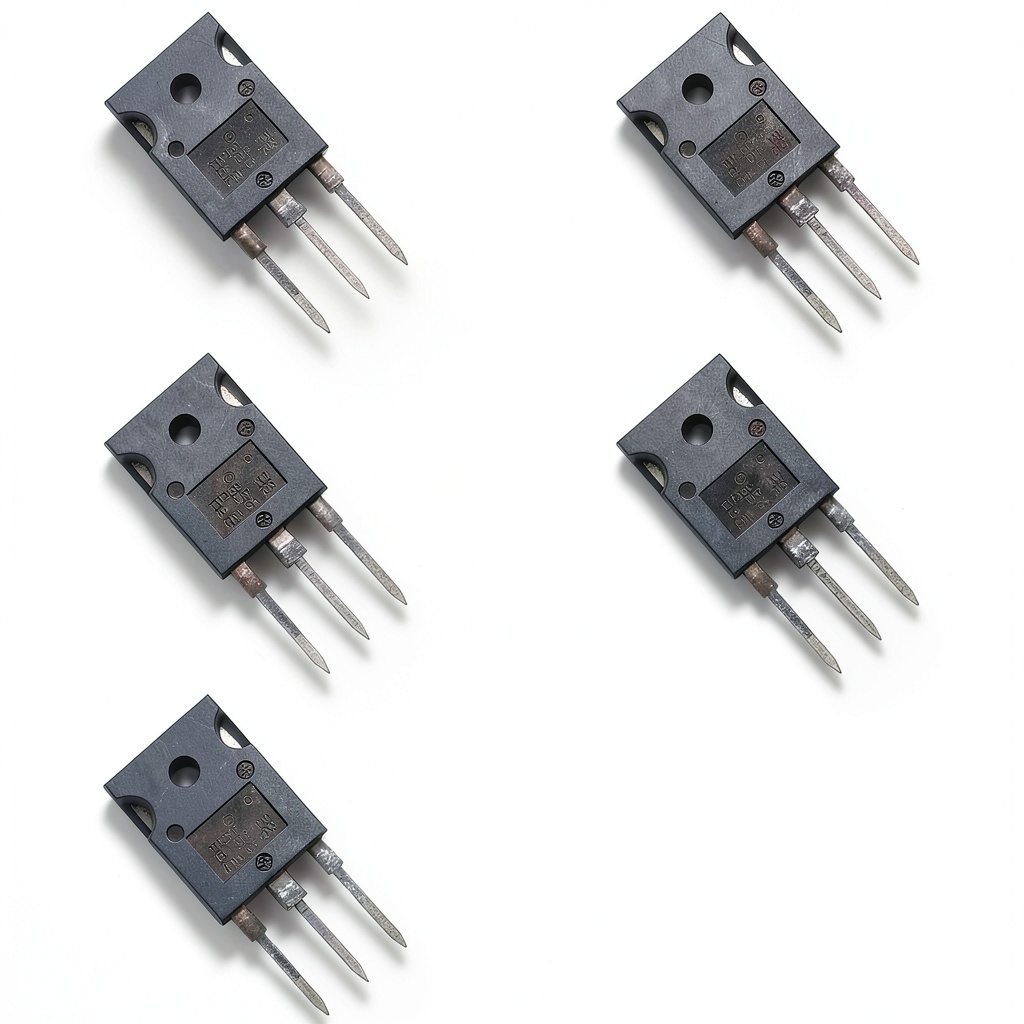

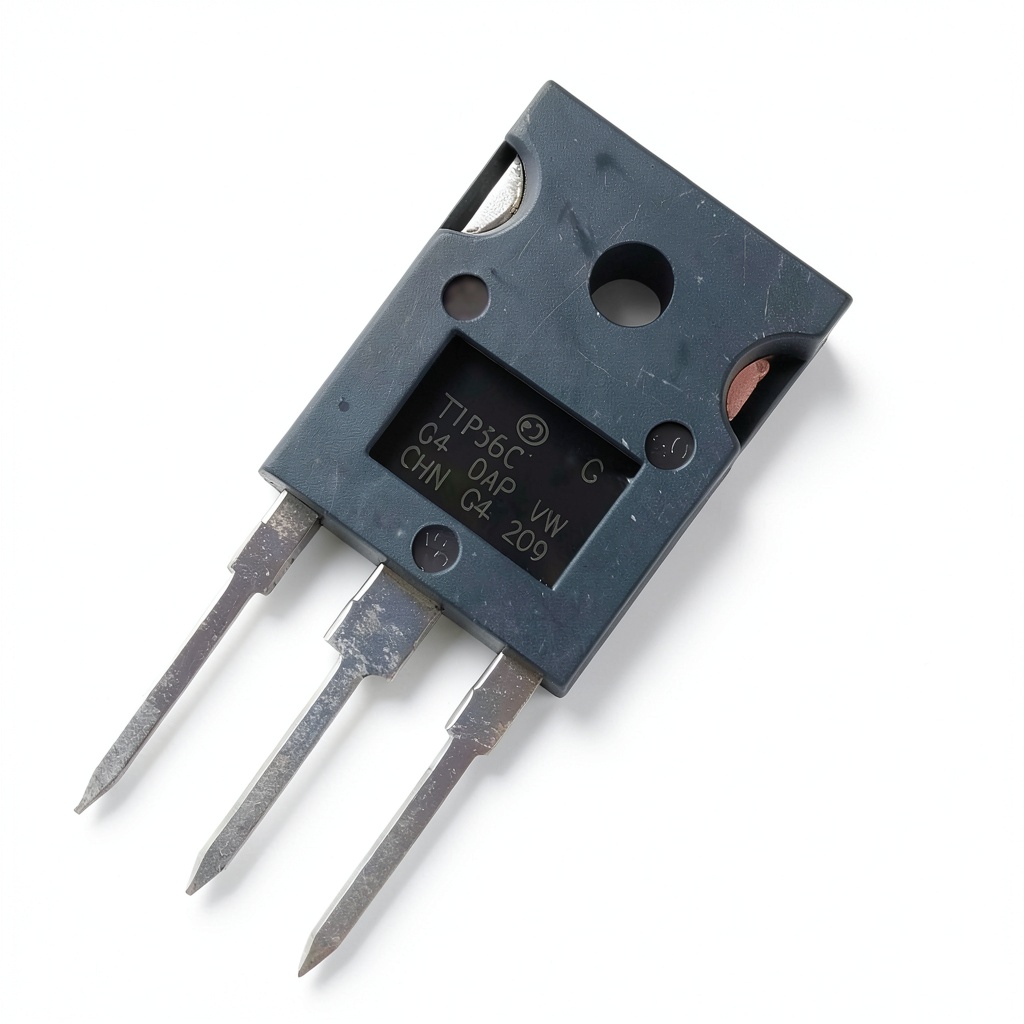

TIP36C 5pcs Bridgold High-Power PNP Transistor 25A TO-247 Package

Description

Product Overview

The Bridgold TIP36C series is a collection of high‑power PNP bipolar junction transistors designed for demanding industrial and scientific applications. Each unit in the 5‑piece pack delivers a continuous collector current of 25 A, while the TO‑247 package provides excellent thermal dissipation and mechanical robustness. The transistors feature a low leakage current (ICEO = 1 mA at 30‑60 V), ensuring efficient operation even in low‑bias environments. With a maximum voltage rating of 60 V and a rugged silicon structure, these devices can handle high‑current switching, linear amplification, and power regulation tasks with confidence. The product specifications are verified against strict data‑sheet requirements, and each batch undergoes thorough testing to guarantee consistency and reliability. The compact 5‑piece configuration simplifies inventory management for engineers who need multiple devices for parallel circuits or redundancy in critical systems.

Usage

These TIP36C transistors excel in a variety of high‑power scenarios. In motor‑drive circuits, they provide the necessary current handling for brushless DC motors, stepper motors, and servo actuators, delivering smooth torque control and rapid response. Power supply designers rely on the TIP36C for voltage regulation stages, where the device can act as a pass element in linear regulators or as a switch in buck and boost converters, thanks to its low saturation voltage and fast switching capabilities. Industrial control systems benefit from the transistor’s ability to drive relays, solenoids, and contactors, offering reliable actuation under harsh environmental conditions. Additionally, the TIP36C is suitable for audio power amplifiers, RF power stages, and LED driver circuits where high current and low distortion are essential. Its robust TO‑247 package ensures that heat can be effectively managed with heatsinks or forced‑air cooling, extending device life even under continuous operation.

Why Choose Us

Choosing Bridgold means selecting a partner committed to quality and performance. Our TIP36C transistors are sourced from reputable semiconductor manufacturers and undergo a multi‑stage screening process that includes electrical testing, thermal cycling, and visual inspection. This rigorous selection guarantees that each device meets or exceeds the specified parameters, reducing the risk of early failure in critical applications. We provide detailed datasheets and application notes to help engineers integrate the transistors efficiently, and our technical support team is available to assist with design optimization, thermal management, and troubleshooting. The 5‑piece packaging offers cost‑effective bulk purchasing while maintaining the flexibility to use individual units as needed. Moreover, Bridgold stands behind its products with a responsive after‑sales service, offering replacements for any units that do not conform to the advertised specifications within the warranty period.

Key Features

• High continuous collector current of 25 A for demanding power applications
• Low leakage (ICEO = 1 mA) ensures efficient operation and reduced standby loss
• Robust TO‑247 package provides superior heat dissipation and mechanical strength
• Strictly selected and tested units guarantee consistent performance and reliability
• Dedicated technical support and responsive after‑sales service for peace of mind

FAQ

What is the maximum voltage rating for the TIP36C transistors?

The TIP36C devices are rated for a collector‑emitter voltage of up to 60 V, making them suitable for most medium‑voltage power circuits.

Can these transistors be used in a linear regulator design?

Yes, the low saturation voltage and high current capability of the TIP36C make them an excellent choice for the pass element in linear voltage regulators, especially when low dropout and high efficiency are required.

How should I manage heat dissipation for the TIP36C?

Due to the TO‑247 package, the transistors can be mounted on a heatsink with a thermal resistance of less than 1 °C/W. For high‑current continuous operation, consider using a heatsink with adequate surface area and, if necessary, add forced‑air cooling to maintain junction temperatures within safe limits.

Are the TIP36C transistors suitable for automotive applications?

While the devices meet many automotive‑grade specifications, they are not specifically qualified for the extreme temperature cycling and vibration standards of automotive environments. For automotive use, ensure that the transistors are protected within a suitable enclosure and that the operating temperature stays within the specified range.

What warranty does Bridgold provide for these transistors?

Bridgold offers a one‑year limited warranty covering any manufacturing defects. If a device fails to meet the advertised specifications, customers can contact our support team for a replacement or refund in accordance with the warranty terms.
