Description
Product Overview

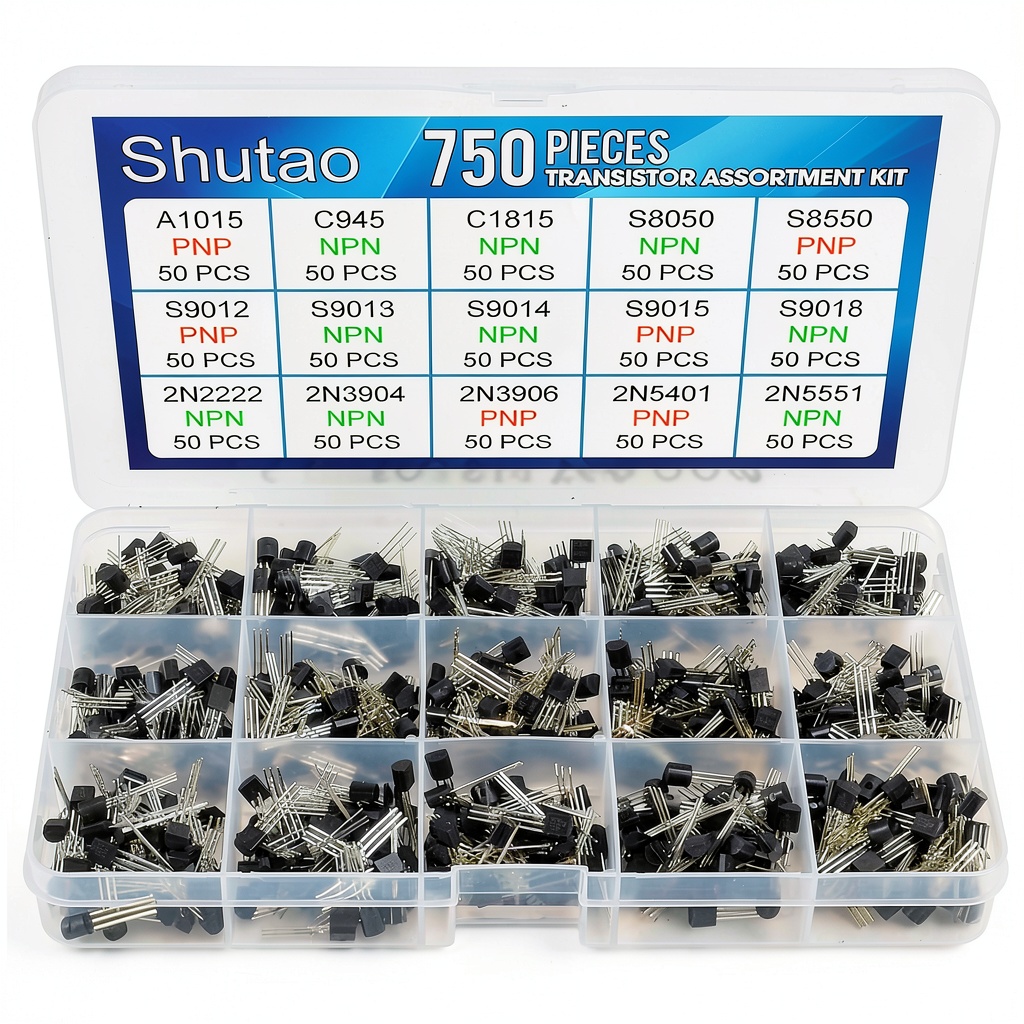

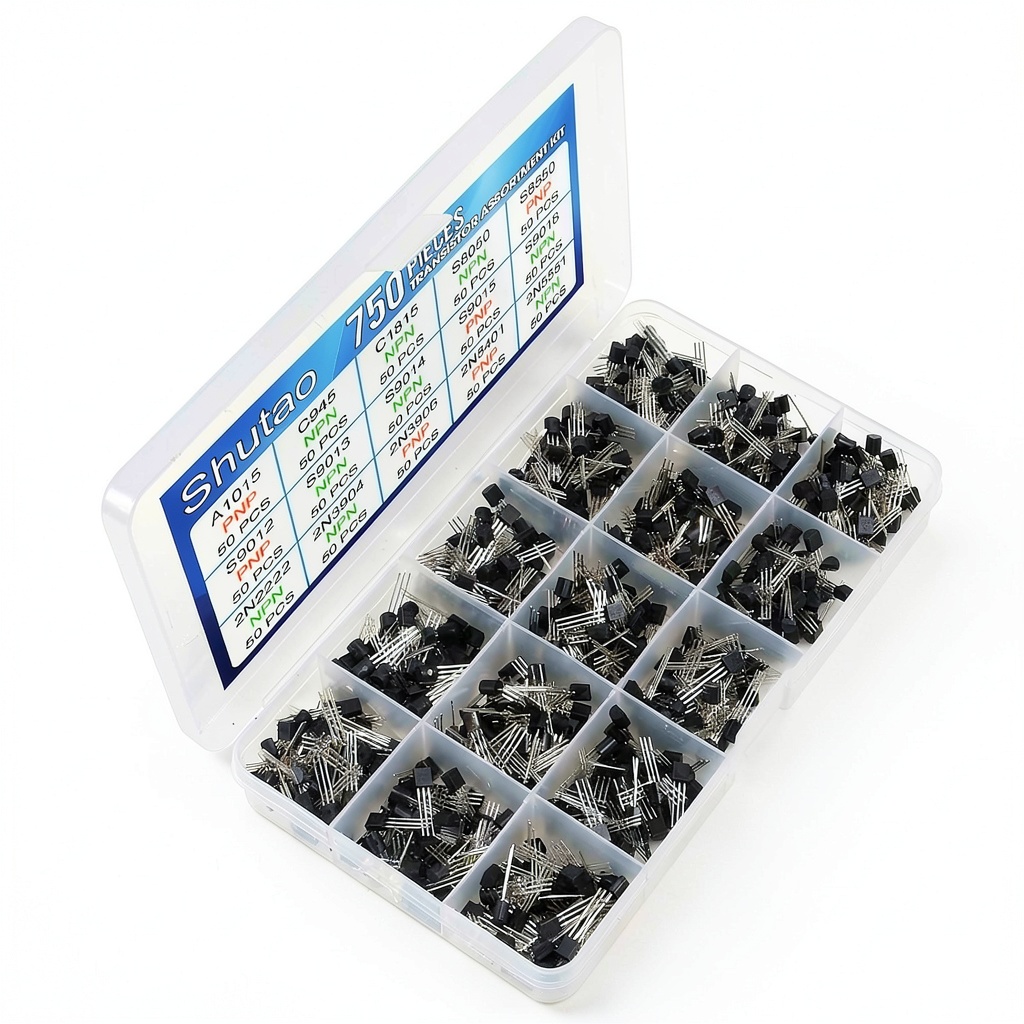

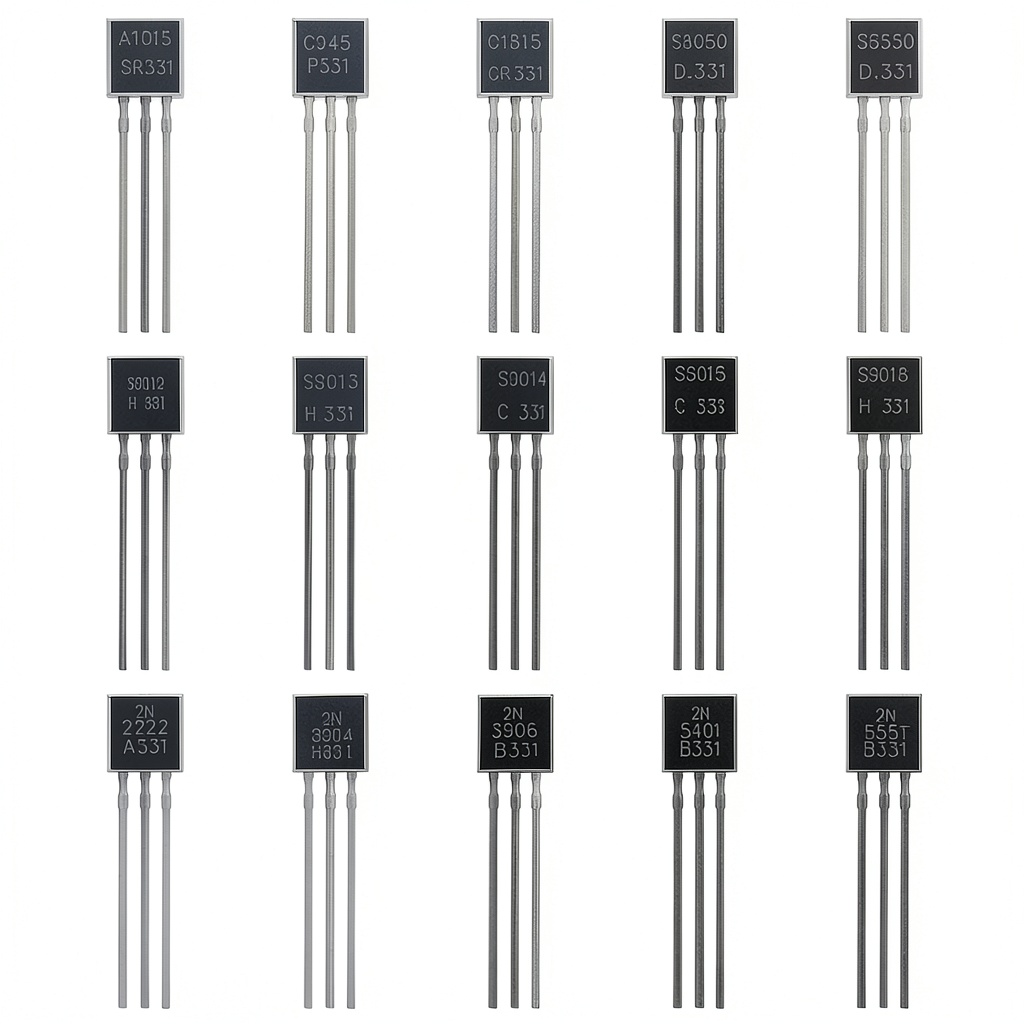

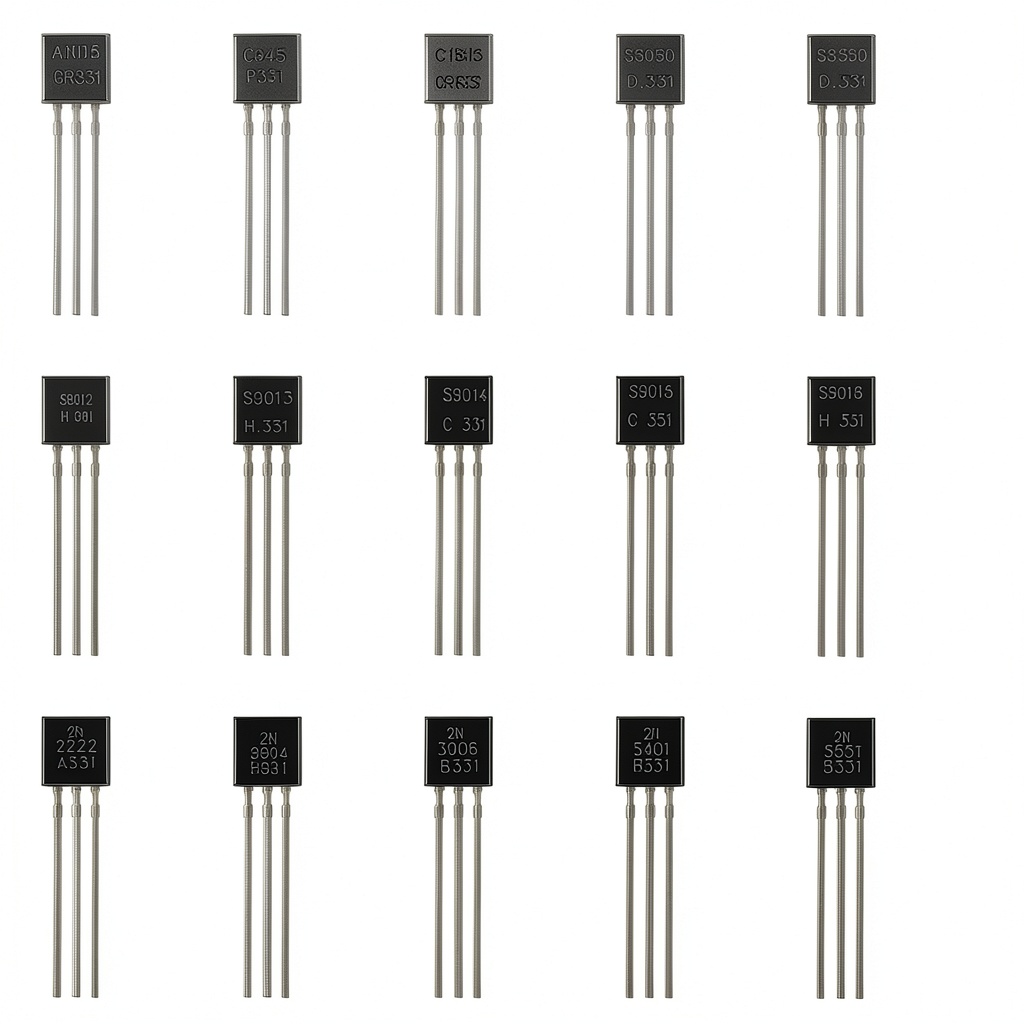

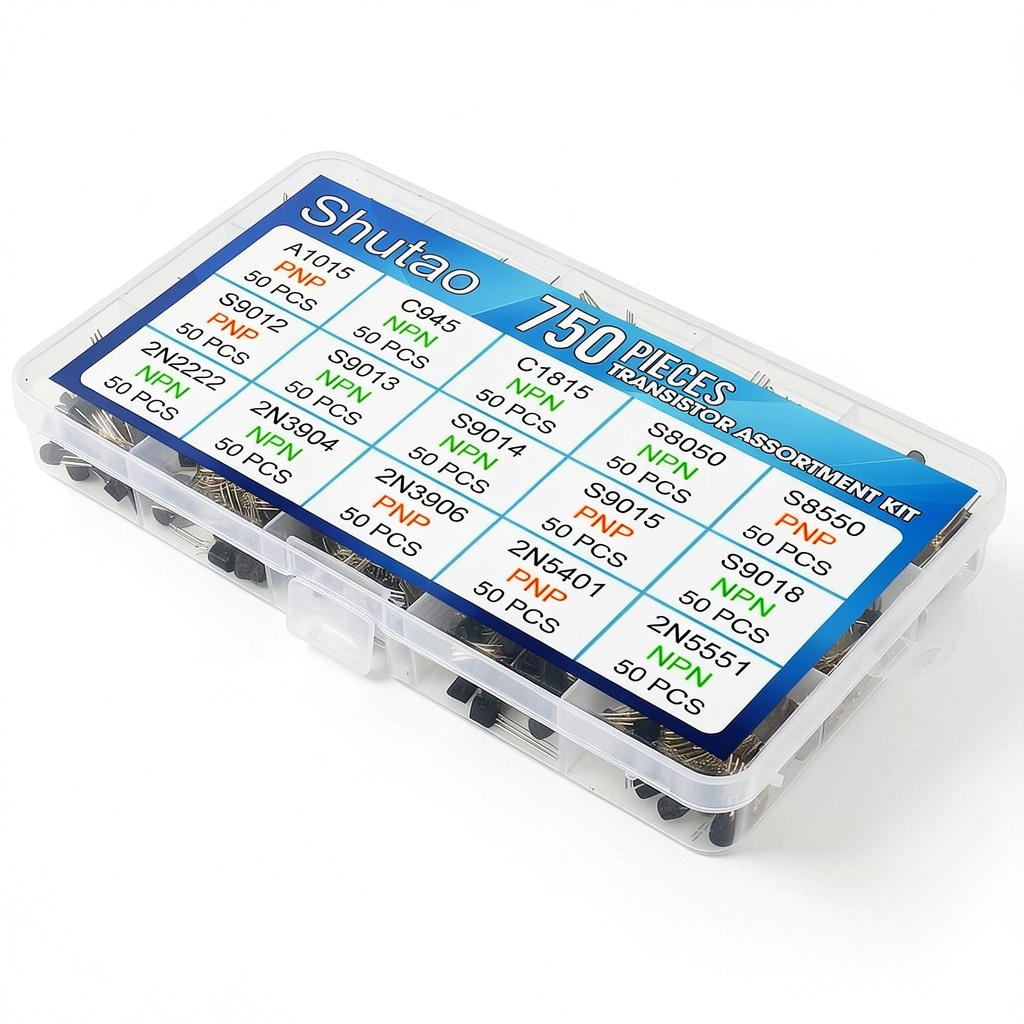

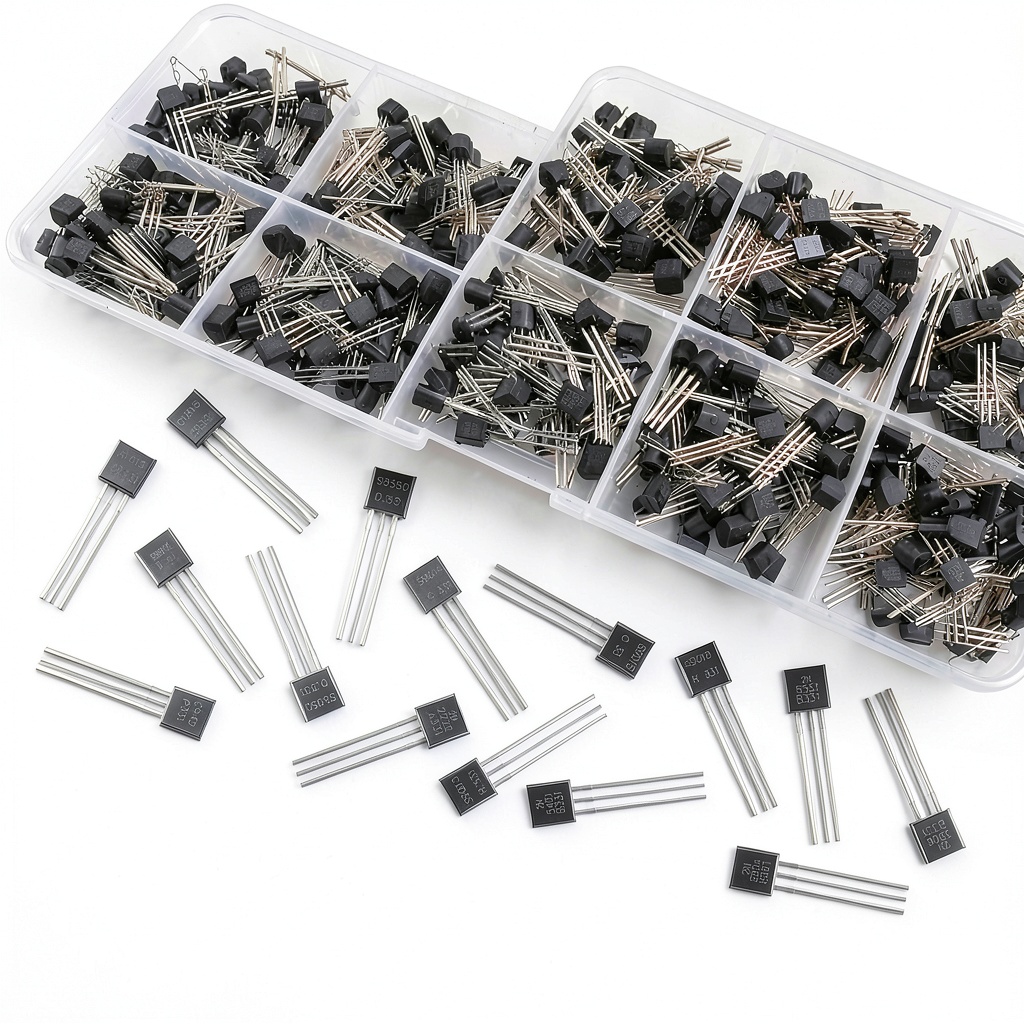

The Shutao 750‑piece transistor kit is a thoughtfully curated collection designed for engineers, hobbyists, and educators who need a reliable assortment of bipolar junction transistors (BJTs). Each kit contains fifteen of the most frequently used transistor models, including A1015, C945, C1815, S8050, S8550, S9012, S9013, S9014, S9015, S9018, 2N2222, 2N3904, 2N3906, 2N5401, and 2N5551. These devices span both PNP and NPN configurations, providing flexibility for a wide range of circuit topologies. The transistors are packaged in a compact, durable box measuring 1.5 × 0.8 × 0.3 inches and weighing just 0.48 oz, making storage and transport effortless. Manufactured by Shutao, a reputable supplier in the semiconductor market, the kit meets industry standards for performance and consistency. The inclusion of both low‑power and medium‑power devices ensures that users can experiment with amplification, switching, and signal‑processing tasks without needing to source additional parts.
Usage
These transistors are ideal for a variety of practical applications. In audio‑video projects, the NPN devices such as 2N2222 and S8050 excel at driving small speakers and pre‑amplifier stages, while the PNP counterparts like A1015 provide complementary push‑pull configurations for balanced outputs. DIY electronics enthusiasts will find the kit indispensable for building hobbyist circuits, including LED drivers, motor controllers, and simple microcontroller interfacing boards. Vehicle repair technicians can employ the higher‑current S-series transistors for automotive lighting control, sensor signal conditioning, and power‑switching modules. Educational institutions benefit from the kit’s breadth, allowing students to explore fundamental transistor theory, biasing techniques, and real‑world circuit design in laboratory settings. The kit’s versatility also extends to prototyping environments where rapid iteration is essential; engineers can quickly swap devices to evaluate performance characteristics such as gain, saturation voltage, and switching speed.
Why Choose Us
Choosing the Shutao transistor kit means selecting a product backed by quality assurance and customer‑focused service. Each transistor undergoes rigorous testing to verify parameters like hFE, VCE(sat), and maximum collector current, ensuring that the components meet or exceed their datasheet specifications. The kit is assembled in a clean, static‑controlled environment to prevent contamination and electrostatic discharge damage, which is critical for maintaining the reliability of semiconductor devices. Shutao’s reputation for consistent supply chain management guarantees that the transistors you receive are genuine and free from counterfeit risks. Additionally, the company offers responsive technical support; whether you need assistance with circuit design, troubleshooting, or selecting the appropriate transistor for a specific application, knowledgeable engineers are available to help. The competitive price point of $8.99 for 750 pieces reflects a commitment to providing value without compromising on quality, making this kit an economical choice for both large‑scale projects and individual experimentation.
Key Features
- Comprehensive assortment of 15 popular BJT models covering both PNP and NPN types.
- High reliability ensured by strict testing and static‑controlled packaging.
- Compact, lightweight box simplifies storage and on‑the‑go prototyping.
- Versatile applications ranging from audio amplification to automotive control.
- Dedicated technical support and warranty for peace of mind.
FAQ
What is the difference between PNP and NPN transistors in this kit?
PNP and NPN transistors are complementary types that handle current flow in opposite directions. NPN devices source current from the collector to the emitter when a positive base voltage is applied, making them suitable for most digital logic and switching tasks. PNP devices, on the other hand, sink current when the base is driven negative relative to the emitter, which is useful for creating push‑pull amplifier stages and certain high‑side switching configurations. Having both types in the same kit allows designers to build balanced circuits and choose the optimal transistor for a given function.
Can these transistors be used for high‑frequency applications?
While the kit primarily targets general‑purpose and low‑to‑medium frequency projects, several of the included models, such as the 2N3904 and S8050, have transition frequencies (fT) that make them suitable for audio‑range and modest RF applications up to a few megahertz. For very high‑frequency designs (tens of megahertz or higher), specialized high‑speed transistors would be recommended, but the kit still provides a solid foundation for learning and prototyping in many common scenarios.
Is the kit compatible with surface‑mount technology (SMT) boards?
The transistors supplied in this kit are all through‑hole (lead‑frame) packages, which are ideal for breadboarding, hand‑soldering, and educational labs. If you need surface‑mount versions, you would need to source the corresponding SMD parts separately. However, the electrical characteristics remain the same, so the design insights gained from using these through‑hole devices can be directly applied when transitioning to SMT components.
What warranty or return policy does Shutao offer for this kit?
Shutao provides a 30‑day limited warranty covering defects in materials and workmanship. If any transistor is found to be non‑functional or does not meet the advertised specifications, customers can contact support to arrange a replacement or refund. The warranty does not cover damage caused by improper handling, static discharge, or usage outside the specified ratings.
How can I get technical assistance for circuit design using these transistors?
Shutao’s technical support team is reachable via email or phone during business hours. They can help you select the appropriate transistor for a specific circuit, advise on biasing calculations, and suggest layout best practices. Additionally, the company’s website hosts reference designs, application notes, and a community forum where users share schematics and troubleshooting tips.
