ALLECIN BJT Transistor Kit 24 Values NPN PNP Assortment Electronics

Description

Product Overview

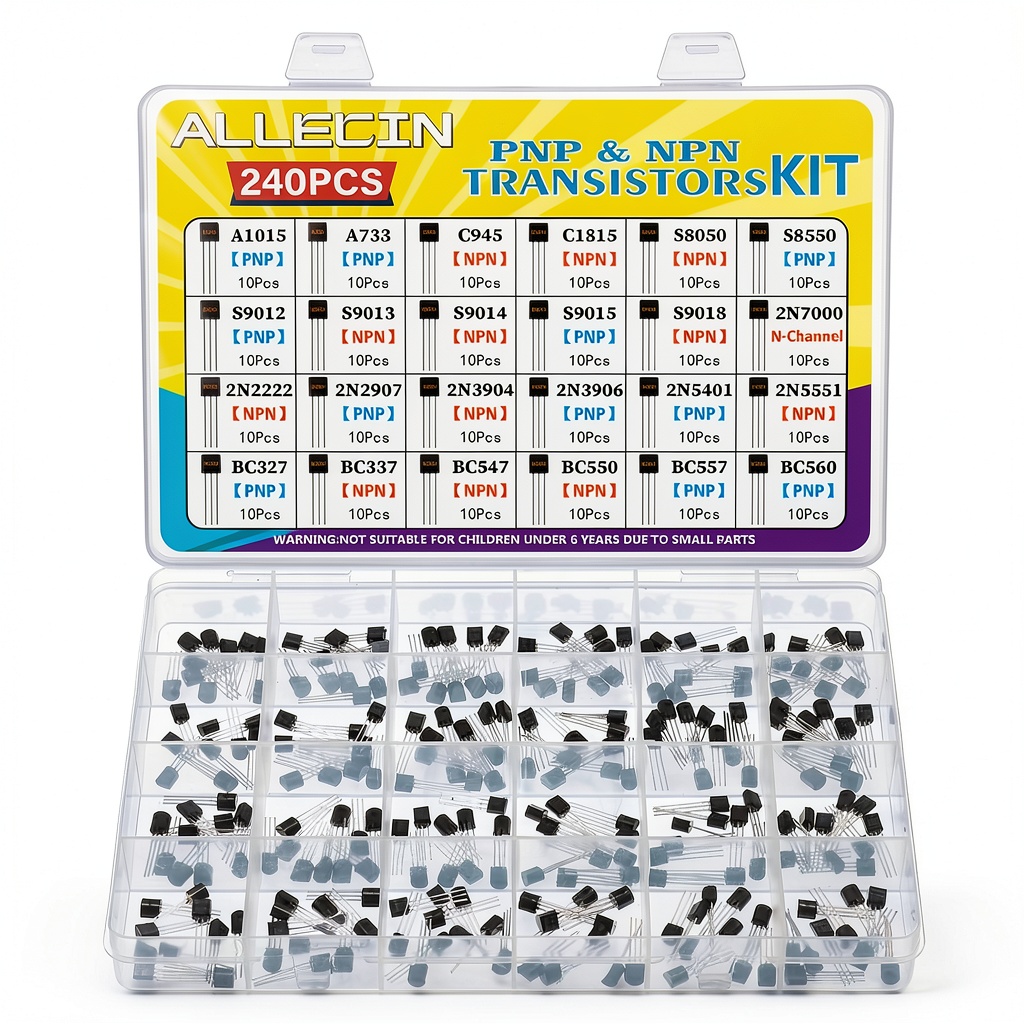

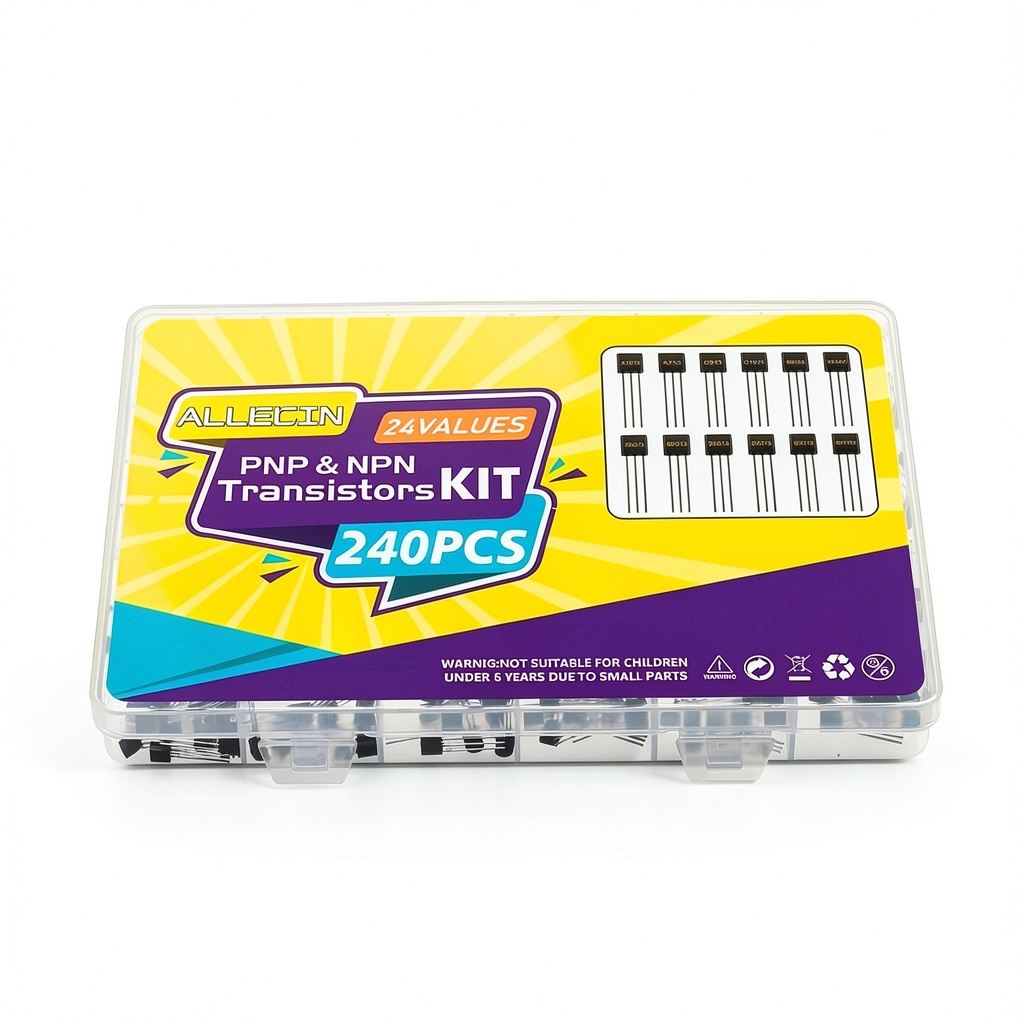

The ALLECIN 24‑value BJT Transistor Kit is a meticulously curated collection of twenty‑four discrete bipolar junction transistors, each housed in a standard TO‑92 package for easy through‑hole mounting. This assortment includes both NPN and PNP devices, ranging from low‑power general‑purpose types such as the 2N2222 and 2N3904 to medium‑power variants like the BC560 and BC557, as well as specialty parts such as the 2N7000 MOSFET‑style transistor. The kit is packaged in a compact, human‑friendly box measuring 7.68 × 5.67 × 0.94 inches and weighing just 4.23 ounces, making it ideal for both bench‑top workstations and portable field kits. Each transistor is clearly labeled with its part number, pin configuration, and polarity, allowing users to quickly identify the correct component without the need for additional reference material. The kit also includes a concise data sheet that outlines key electrical parameters—collector‑emitter voltage, maximum current, gain (hFE), and typical switching speeds—so engineers can immediately assess suitability for a given circuit design.

Usage

Designed with versatility in mind, this transistor kit serves a broad spectrum of applications. Hobbyists building Arduino‑compatible sensor modules will find the NPN transistors perfect for switching loads such as LEDs, relays, and small motors, while the PNP devices enable complementary push‑pull amplifier stages for audio projects. In academic settings, the kit provides a hands‑on learning tool for students exploring semiconductor fundamentals, biasing techniques, and transistor‑based logic gates. Professional engineers benefit from the ready availability of a wide range of part numbers when troubleshooting prototype boards, performing failure analysis, or conducting rapid design iterations. The kit’s robust TO‑92 form factor ensures reliable thermal performance in low‑to‑moderate power environments, and the inclusion of the 2N7000 offers a convenient solution for low‑current switching tasks that traditionally require a MOSFET. Whether you are assembling a hobbyist radio, repairing a vintage audio amplifier, or developing a custom power regulator, the ALLECIN kit delivers the exact transistor you need without the delay of ordering individual components.

Why Choose Us

ALLECIN has built a reputation for delivering high‑quality electronic components that meet stringent industry standards. Each transistor in this kit undergoes rigorous testing for electrical consistency, leakage current, and gain stability, ensuring that the parts perform exactly as specified in their datasheets. The humanized packaging not only protects the delicate leads from bending or oxidation but also features a clear, printed layout that aligns each part with its corresponding slot, reducing the time spent searching for the right component. Our commitment to customer satisfaction extends beyond the product itself; we provide responsive technical support, detailed application notes, and a 30‑day return policy for any items that do not meet your expectations. By choosing the ALLECIN BJT Transistor Kit, you gain access to a trusted brand, a comprehensive component range, and a service experience designed to keep your projects moving forward.

Key Features

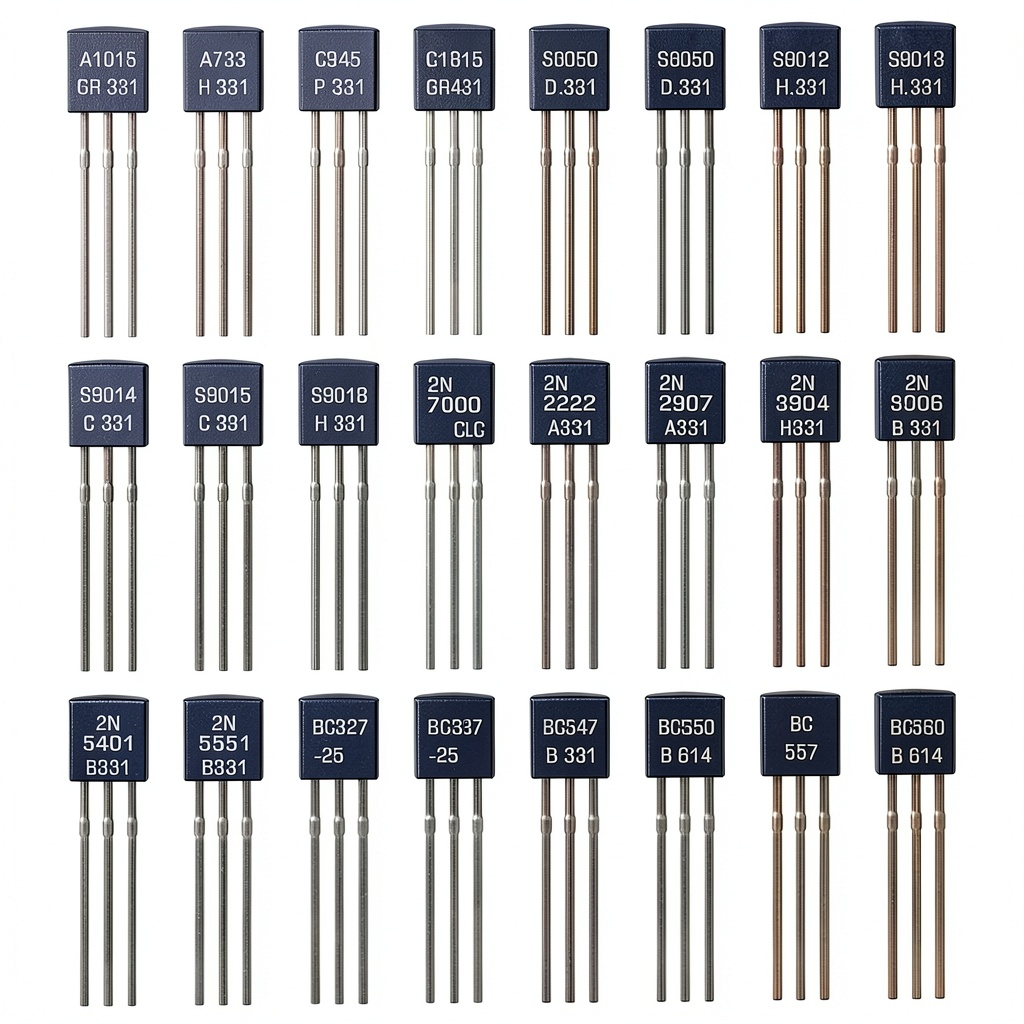

• Twenty‑four distinct transistor models covering a wide voltage and current spectrum, eliminating the need for multiple separate purchases.
• Both NPN and PNP types included, enabling designers to create complementary circuits and balanced amplifier stages.

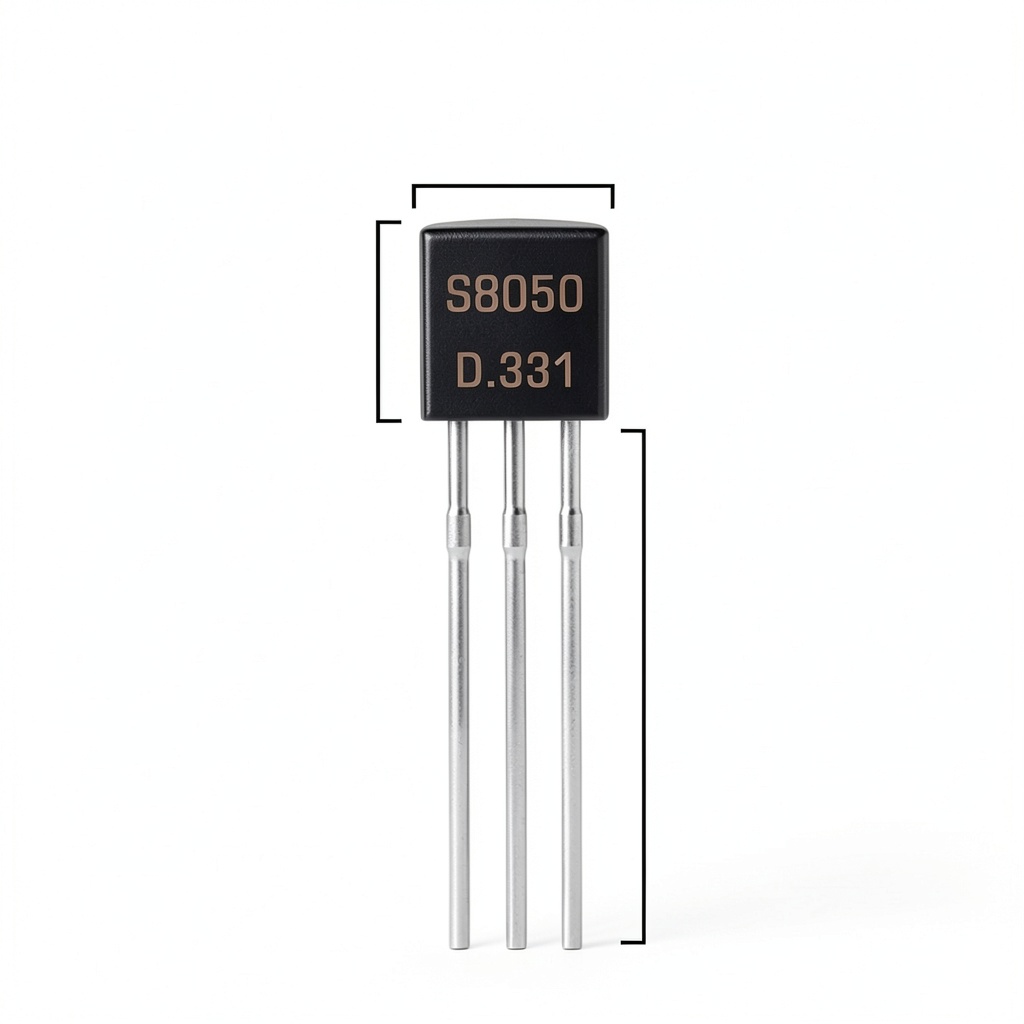

• Standard TO‑92 packaging ensures easy insertion into breadboards, perfboards, and PCB prototypes without special tools.
• Human‑friendly storage box with printed part numbers and pinout diagrams for quick identification and reduced assembly errors.
• Dedicated ALLECIN technical support and comprehensive datasheets provide guidance for optimal usage and troubleshooting.

FAQ

What is the difference between NPN and PNP transistors in this kit?

NPN transistors conduct when a positive voltage is applied to the base relative to the emitter, making them ideal for sinking current. PNP transistors conduct when the base is pulled lower than the emitter, which is useful for sourcing current. Having both types allows you to design complementary push‑pull circuits and more flexible switching networks.

Can these transistors be used in high‑frequency applications?

Most of the transistors in the kit are rated for general‑purpose and low‑to‑moderate frequency use up to a few megahertz. For very high‑frequency designs (tens of megahertz and above), specialized RF transistors are recommended, but the included parts are suitable for typical audio, RF‑mixing, and switching tasks encountered in hobby and educational projects.

Is the kit compatible with surface‑mount technology (SMT) boards?

The transistors are supplied in the through‑hole TO‑92 package, which is not directly compatible with surface‑mount pads. However, you can use adapter sockets or breakout boards to mount the devices on an SMT layout if needed.

What warranty or support does ALLECIN provide for this kit?

ALLECIN offers a 30‑day satisfaction guarantee. If any transistor is found to be defective or does not match the listed specifications, you can contact our support team for a replacement or refund. Technical assistance is also available for design questions and application guidance.

How should I store the transistors to maintain their reliability?

Keep the kit in a dry, temperature‑controlled environment away from direct sunlight and static‑prone surfaces. The provided anti‑static bag inside the box adds an extra layer of protection against electrostatic discharge, ensuring the transistors retain their performance characteristics over time.
